              1. 首頁 > 產品中心 > 高清多格式混合矩陣 >

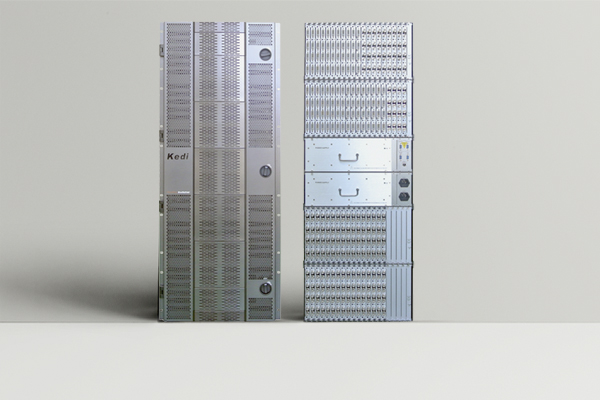

                Kd-MF大型高清多格式混合矩陣 (Kd-MF large-sized HD multi-format matrix)

                產品描述:

                 Kd-MF高清多格式混合矩陣是一款可達320×320規模,采用機架式純硬件架構,輸入卡、輸出卡、風扇、電源均為模塊化設計,輸入輸出卡熱插拔恢復時間≤2s,啟動時間≤10s??伸`活配置輸入、輸出板卡的高性能的多信號、多格式的模塊化插板式矩陣系統。依據傳輸信號圖像無壓縮、無損失、不失真,傳輸信號過程高清實時、無延時的特點,實現真正“全高清”信號,輸出高質量的無抖動的信號圖像。


                產品系列分類

                 Kd-MF系列大型高清多格式混合矩陣可分為Kd-MF系列144×144、288×288、320×320大規模的矩陣。其中320×320規模的多格式混合矩陣,由科迪在國內率先推出,突破了國內的多格式混合矩陣72×72的規模瓶頸,為全國規模最大的多格式混合矩陣,在秉承國際先進的設計理念的同時,更開辟了矩陣從單一的信號切換,到可同時進行超大規模信號之間切換、轉換的先河。


                產品信號種類

                Kd-MF系列高清多格式混合矩陣的輸入、輸出板卡可任意選擇各種信號,包括12/3G-SDI、HD-SDI、SD-SDI、HDMI、DVI、VGA、YPbPr、CVBS、HDBaseT、光纖。每一路的輸出都可自由選擇任何一路的輸入進行轉換、切換,且不會干擾其它輸出,碼率可達18Gbps、分辨率可達3840×2160@60Hz,并且向下兼容1080p@60Hz、1080p@30Hz、1080i@60Hz、720p@60Hz、1280×1024@60Hz、1024×768@60Hz、800×600@60Hz等常見信號格式。



                產品工藝結構

                Kd-MF系列高清多格式混合矩陣具有領先的FPGA陣列式純硬件技術架構、模塊化前后插板式結構,由科迪在國內率先應用。其中輸入、輸出板卡采用模塊化后插板式結構,可靈活配置不同的信號格式與數量;電源板卡、控制板卡采用雙電源、雙控制的冗余熱備份的模塊化前、后插板式結構,可實時在線升級、維護與擴容;獨特的風冷降噪溫控設計,大大提高了設備的可靠性和穩定性。




                Product Description:

                Kd-MF HD multi-format matrix is up to 320×320 scale, using rack-mount pure hardware architecture. Input board, output board, fan, power supply are of modular design. Input and output board hot swap recovery time ≤2s, startup time ≤10s. High-performance multi-signal, multi-format modular plug-in matrix system with flexible configuration of input and output boards. As the transmission signal image no compression, no loss, no distortion, the transmission signal process high-definition, real-time, no delay features, to achieve the real "full HD" signal, making it output high-quality non-jitter signal image.



                Product series classification

                Kd-MF series large HD multi-format matrix can be divided into Kd-MF 144×144, 288×288, 320×320 matrix. Among them, the 320×320 multi-format matrix, which was first launched by Kedi in China, broke through the scale bottleneck of the domestic multi-format matrix 72×72, and became the largest multi-format matrix in China. While adhering to the international advanced design concept, it not only supports old-fashioned single signal switch, also the first to switch ultra-large scale signals at the same time.



                Product signal type

                Kd-MF series HD multi-format matrix input and output boards can be arbitrarily selected from a variety of signals, including 12/3G-SDI, HD-SDI, SD-SDI, HDMI, DVI, VGA, YPbPr, CVBS, HDBaseT, fiber. The output of each way can freely choose the input of any way for conversion and switching, and will not interfere with other outputs. The bit rate can reach 18Gbps, and the resolution can reach 3840×2160@60Hz, meanwhile backward compatible with 1080p@60Hz, 1080p@30Hz, 1080i@60Hz, 720p@60Hz, 1280×1024@60Hz, 1024×768@60Hz, 800×600@60Hz and other common signal formats.



                Product process structure

                Kd-MF series HD multi-format matrix has the leading FPGA array pure hardware technology architecture, modular front and rear plug-in plate structure, which is first applied by Kedi in China. The input and output boards adopt modular rear insert plate structure, which can flexibly configure different signal formats and quantities. The power board and control board adopt the modular front and rear plug-in plate structure with dual power supply and dual control, which can be upgraded, maintained and expanded in real time. The unique air-cooling noise reduction temperature control design greatly improves the reliability and stability of the equipment.




                ?輸入信號格式:12/3G-SDI、HD-SDI、SD-SDI、4KHDMI、DVI、VGA、YPbPr、CVBS;
                ?光纖輸入信號格式:SDI、DVI、VGA、4KHDMI、YPbPr、CVBS;
                ?網絡輸入信號格式:HDBaseT;
                ?輸出信號格式:12/3G-SDI、HD-SDI、SD-SDI、4KHDMI、DVI、VGA、YPbPr、CVBS;
                ?光纖輸出信號格式:SDI、DVI、VGA、4KHDMI、YPbPr、CVBS;
                ?網絡輸出信號格式:HDBaseT;
                ?矩陣規模:8×8~72×72、144×144~320×320,更大規模定制;
                ?具有一卡兩路,可靈活配置,支持圖像最高分辨率3840×2160@60Hz,并符合VESA和HDTV全部常規標準;
                ?向下兼容各種信號格式的分辨率和刷新頻率,具有自動統一信號格式輸出上屏,以及依據用戶需求手動調節的倍線功能;
                ?支持網絡視頻的解碼顯示,支持H.264和H.265網絡攝像機直接解碼顯示,支持自動解析,支持標準ONVIF,RTSP,TCP,UDP等多種網絡協議;
                ?光纖板卡支持單模和多模的兩種模式;雙絞線板卡支持HDBaseT技術;
                ?具有信號均衡補償、修正、自動調節和時鐘恢復功能,確保信號轉換切換后無損耗;
                ?輸出板卡具有時基校準同步功能,在切換畫面的瞬間,盡最大可能保持畫面的完整,保證切換瞬間畫面無抖動,達到真正的“無縫”切換,信號切換響應速度15ms;
                ?支持預案保存及調用,預案保存數量2000個,調用時間8ms;
                ?提供多種通訊方式:RS-232控制和Ethernet控制;
                ?提供多種控制方式:外置專用面板控制和專用軟件控制;
                ?支持信號窗口拼接、疊加、漫游、切換功能;
                ?支持專用軟件控制,實時監測矩陣工作狀態,對輸入、輸出板卡進行參數處理;
                ?模塊化前后插板式結構設計,信號接口與信號板卡一體化,冗余式雙電源、雙控制系統;
                ?支持帶電熱插拔、掉電記憶、斷電保護功能,提高系統的穩定性和可靠性;
                ?具備輸入預監輸出回顯功能,回顯圖像清晰流暢:支持全色度取樣的圖像無損處理,及4:4:4采樣不抽幀處理;
                ?支持多用戶同時登陸,操作實時同步顯示,不同端口切換不影響其他用戶操作,可同時響應12條命令的切換;
                ?90~260V/AC 50/60Hz電源,適用于全球范圍;
                ? Input signal format: 12/3G-SDI, HD-SDI, SD-SDI, 4KHDMI, DVI, VGA, YPbPr, CVBS;
                ? Fiber input signal format: SDI, DVI, VGA, 4KHDMI, YPbPr, CVBS; ? Network input signal format: HDBaseT;
                ? Output signal format: 12/3G-SDI, HD-SDI, SD-SDI, 4KHDMI, DVI, VGA, YPbPr, CVBS;
                ? Fiber output signal format: SDI, DVI, VGA, 4KHDMI, YPbPr, CVBS; ? Network output signal format: HDBaseT;
                ? Matrix size: 8×8 ~ 72×72, 144×144 ~ 320×320, customization for larger;
                ? One board has two channels, easy for flexible configuration. Support the highest resolution of 3840×2160@60Hz, and in line with all conventional VESA and HDTV standards;
                ? Downward compatible with the resolution and refresh frequency of various signal formats, with automatic unified signal format output on the screen, and manually adjusted line doubling function according to user needs;
                ? Support network video decoding display, support H.264 and H.265 network camera direct decoding display, support automatic parsing, and support standard ONVIF, RTSP, TCP, UDP and other network protocols;
                ? Fiber optic board supports single mode and multi-mode; twisted pair board supports HDBaseT technology;
                ? With the function of signal equalization compensation, correction, automatic adjustment and clock recovery, ensure that there is no loss after the signal conversion;
                ? The output board has the time-based calibration synchronization function, in the moment of switching images, as far as possible to maintain the integrity of the screen, to ensure that the screen at the switching moment without jitter, to achieve a real "seamless" switching. Signal switching response time is 15ms;
                ? Support preset saving and calling. Preset saving number can be up to 2000. Calling time costs 8ms;
                ? Provide a variety of communication methods: RS-232 control and Ethernet control;
                ? Provide a variety of control methods: external specialized panel control and specialized software control;
                ? Support signal window splicing, superposition, roaming, switching functions;
                ? Support specialized software control, real-time monitoring of matrix working status, input and output board parameter processing;
                ? Modular front and rear plug-in plate structure design, integration of signal interface and signal board, redundant dual power supply, dual control system;
                ? Support plug with electric, power off memory, power off protection, improving the stability and reliability of the system;
                ? With input pre-monitoring output echo function, the echo image is clear and smooth: support full chrominance sampling image lossless processing, and 4:4:4 sampling without frame processing; ? Support multi-user login at the same time, synchronous display of real-time operation. Switching by one user does not affect other users’ operations. It can respond to 12 commands at the same time;
                ?90 ~ 260V/AC 50/60Hz power supply, suitable for global scope.

                機箱規格

                型號

                Kd-MF-144

                Kd-MF-288

                Kd-MF-320

                最大規模

                144×144

                288×288

                320×320

                可插卡數量

                72塊輸入板卡

                72塊輸出板卡

                144塊輸入板卡

                144塊輸出板卡

                160塊輸入板卡

                160塊輸出板卡

                輸入板卡

                12/3G-SDI、HD-SDI、SD-SDI、4KHDMI、DVI、VGA、YPbPr、CVBS、IP

                SDI光纖、DVI光纖、VGA光纖、HDMI光纖、YPbPr光纖、CVBS光纖、 HDBaseT雙絞線

                輸出板卡

                12/3G-SDI、HD-SDI、SD-SDI、4KHDMI、DVI、VGA、YPbPr、CVBS、IP、AHD

                SDI光纖、DVI光纖、VGA光纖、HDMI光纖、YPbPr光纖、CVBS光纖、 HDBaseT雙絞線

                信號電平

                T.M.D.S. 2.9V~3.3V

                支持分辨率

                最高分辨率1920×1200@60Hz

                控制接口

                RS-485、RS-422、RS-232、TCP/IP

                功耗

                <1500w,含板卡

                <3000w,含板卡

                <3200w,含板卡

                高度

                26U

                44U

                48U

                尺寸W×D×H

                483×503×1144(mm)

                483×503×1936(mm)

                483×503×2112(mm)

                電源要求

                90~260V/AC,50/60Hz

                工作溫度

                0℃~50℃




                技術指標







                DVI

                信號幅度

                800mVp-p ± 10%

                阻抗

                100Ω

                上升/下降時間

                <0.3TBit(20%-80%)

                均衡

                >20m 1920×1200@60Hz(Molex TM線纜或同級線纜)

                碼率

                1.65Gbps(Max)

                DVI 1.0規范

                DVI 1.0規范定義1920×1200@ 60Hz 分辨率

                HDMI

                信號幅度

                800mVp-p ± 10%

                阻抗

                100Ω

                上升/下降時間

                <0.3TBit(20%-80%)

                均衡

                <5m 3840×2160@60Hz

                碼率

                18Gbps (Max)

                HDCP2.2

                HDCP2.2優質內容保護協議

                HDMI2.0規范

                HDMI2.0規范定義3840×2160@60Hz分辨率

                均衡

                <5m 3840×2160@60Hz

                HDMI1.4規范

                HDMI 1.4規范定義1920×1200@60Hz 分辨率





                VGA





                信號幅度

                1Vp-p ±10%

                阻抗

                75Ω

                串擾

                ≤60dB @ 4.43MHz

                信噪比

                ≥56 dB(非加權),≥70 dB(加權)

                帶寬

                ≥350MHz





                SDI

                信號幅度

                800mVp-p ± 10%

                阻抗

                75Ω

                上升/下降時間

                SDI<1100ps    HD-SDI<270ps  12/3G-SDI<135ps

                過沖

                <5% L

                抖動

                ≤0.2UI(SDI、HD-SDI)≤0.3UI(12/3G-SDI)

                碼率

                1.485Gbps(HD-SDI)2.97/11.88Gbps(12/3G-SDI)







                YPbPr

                信號幅度

                Y: 0.7 Vp-p ±10%

                Pb:0.35 Vp-p ±10%

                Pr:0.35 Vp-p ±10%

                阻抗

                75Ω

                串擾

                ≤60dB@4.43MHz

                信噪比

                ≥56 dB(非加權),≥70 dB(加權)

                帶寬

                350MHz







                CVBS

                信號幅度

                1Vp-p ±10%

                連接器

                BNC

                阻抗

                75Ω

                串擾

                ≤-60dB@4.43MHz

                頻率響應

                ±0.2dB@6MHz

                微分增益

                ±1%

                微分相位

                ±1°

                信噪比

                ≥56 dB(非加權),≥70 dB(加權)

                帶寬

                150MHz

                光纖

                接口類型

                LC接口

                波長(1~4 ch. CWDM)

                1310nm;1550nm

                IP解碼卡

                輸入接口

                2路高速RJ45

                輸出分辨率

                HDMI 1080p60輸出

                解碼路數

                最多20路1080p@10Mbps   碼流

                輸出窗口

                最大支持16路畫面分割,可自定義畫面分割模式

                協議支持

                ONVIF,RTSP,TCP,UDP等多種網絡協議

                攝像頭支持

                ???、大華、華為等主流攝像頭

                IP編碼卡

                輸入接口

                2路高速RJ45

                信號輸入

                HDMI 1080p60輸入

                解碼格式

                實時H.264/5多路碼流編碼

                編碼尺寸

                720P30/60,1080P30/60,1080×720,720×576,640×480等

                編碼視頻幀率

                25/30幀

                支持協議

                HTTP,ONVIF,RTSP,UDP等

                AHD

                輸出接口

                BNC

                輸出分辨率

                1080P25/30

                傳輸距離

                >300米Belden 1694A




                Chassis specifications

                Model

                Kd-MF-144

                Kd-MF-288

                Kd-MF-320

                Maximum scale

                144×144

                288×288

                320×320

                Maximum board number

                72 Input board

                72 Output board

                144 Input board

                144 Output board

                160 Input board

                160 Output board

                Input board

                12/3G-SDI、HD-SDI、SD-SDI、4KHDMI、DVI、VGA、YPbPr、CVBS、IP

                SDI Fiber、DVI Fiber、VGA Fiber、HDMI Fiber、YPbPr Fiber、CVBS Fiber、 HDBaseT Twisted pair cable

                Output

                board

                12/3G-SDI、HD-SDI、SD-SDI、4KHDMI、DVI、VGA、YPbPr、CVBS、IP、AHD

                SDI Fiber、DVI Fiber、VGA Fiber、HDMI Fiber、YPbPr Fiber、CVBS Fiber、 HDBase Twisted pair cable

                Signal level

                T.M.D.S. 2.9V~3.3V

                Resolution supported

                Maximum resolution1920×1200@60Hz

                Control interface

                RS-485、RS-422、RS-232、TCP/IP

                Power dissipation

                <1500w,including boards

                <3000w,including boards

                <3200w,including boards

                Height

                26U

                44U

                48U

                Dimension

                W×D×H

                483×503×1144(mm)

                483×503×1936(mm)

                483×503×2112(mm)

                Power requirements

                90~260V/AC,50/60Hz

                Operating temperature

                0℃~50℃





                Technical specifications







                DVI

                Signal amplitude

                800mVp-p ± 10%

                Impedance

                100Ω

                Rise/Fall time

                <0.3TBit(20%-80%)

                Balance

                >20m 1920×1200@60Hz(Molex TM cable or equivalent)

                Bit rate

                1.65Gbps(Max)

                DVI 1.0 specification

                Maximum resolution 1920× 1200@60Hz defined by DVI 1.0 specification

                HDMI

                Signal amplitude

                800mVp-p ± 10%

                Impedance

                100Ω

                Rise/Fall time

                <0.3TBit(20%-80%)

                Balance

                <5m 3840×2160@60Hz

                Bit rate

                18Gbps (Max)

                HDCP2.2

                HDCP2.2 Premium Content Protection Protocol

                HDMI2.0 specification

                Maximum resolution 3840×2160@60Hz defined by HDMI2.0 specification

                Balance

                <5m 3840×2160@60Hz

                HDMI1.4 Specification

                Maximum resolution 1920× 1200@60Hz defined by HDMI 1.4 specification





                VGA





                Signal amplitude

                1Vp-p ±10%

                Impedance

                75Ω

                Crosstalk

                ≤60dB @ 4.43MHz

                Signal-noise ratio

                ≥56 dB(No weighting),≥70 dB(weighting)

                Bandwidth

                ≥350MHz





                SDI

                Signal amplitude

                800mVp-p ± 10%

                Impedance

                75Ω

                Rise/Fall time

                SDI<1100ps    HD-SDI<270ps  12/3G-SDI<135ps

                overshoot

                <5% L

                flicker

                ≤0.2UI(SDI、HD-SDI)≤0.3UI(12/3G-SDI)

                Bit rate

                1.485Gbps(HD-SDI)2.97/11.88Gbps(12/3G-SDI)







                YPbPr

                Signal amplitude

                Y: 0.7 Vp-p ±10%

                Pb:0.35 Vp-p ±10%

                Pr:0.35 Vp-p ±10%

                Signal amplitude

                75Ω

                crosstalk

                ≤60dB@4.43MHz

                Signal-noise ratio

                ≥56 dB(No weighting),≥70 dB(weighting)

                bandwidth

                350MHz







                CVBS

                Signal amplitude

                1Vp-p ±10%

                connector

                BNC

                Impedance

                75Ω

                crosstalk

                ≤-60dB@4.43MHz

                Frequency response

                ±0.2dB@6MHz

                Differential gain

                ±1%

                Differential phase

                ±1°

                Signal-noise ratio

                ≥56 dB(No weighting),≥70 dB(weighting)

                bandwidth

                150MHz

                Optical fiber

                nterface type

                LC interface

                Wavelength (1~4 ch.CWDM)

                1310nm;1550nm

                IP decoding board

                Input interface

                RJ45 2-channel high-speed RJ45

                Output resolution

                HDMI 1080p60 output

                Decoding channels

                Maximum 20 streams of 1080p@10Mbps

                Output window

                Support up to 16 screen segmentation, and support customization of the screen segmentation mode

                Protocol supported

                ONVIF, RTSP, TCP, UDP and other network protocols

                Camera supported

                HikVision, Dahua, Huawei and other mainstream cameras

                IP encoding board

                Input interface

                2-channel high-speed RJ45

                Signal input

                HDMI 1080p60 input

                Decoding format

                Real-time H.264/5 multi-stream encoding

                Encoding resolution

                720P30/60,1080P30/60,1080×720,720×576,640×480

                Encoding video frame rate

                25/30 frames

                Protocol supported

                HTTP,ONVIF,RTSP,UDP

                AHD

                Output interface

                BNC

                Output resolution

                1080P25/30

                Transmission distance

                >300M Belden 1694A




                訂購指南



                型號

                說    明


                Kd-MF-144

                26U, 最大規模:144×144

                Kd-MF-288

                44U, 最大規模:288×288

                Kd-MF-320

                48U, 最大規模:320×320











                輸入板卡



                MI1-12G

                1路12G/HD -SDI輸入板卡,支持嵌入音頻,自適應12G/3G/HD -SDI信號輸入,支持全高清3840X2160@60Hz及以下高清分辨率;分辨率自動識別

                MI2-3G

                2路3G/HD/SD-SDI輸入板卡,自適應3G/HD -SDI信號輸入,支持嵌入音頻

                MI2-HM4K

                2路4K輸入板卡,HDMI2.0規范,帶寬達18Gbps,YUV 4:4:4無色度抽樣,支持3840×2160@60Hz,支持嵌入音頻,

                MI2-HM

                2路HDMI輸入板卡,支持HDCP,支持HDMI1.4協議、自適應1080P@60Hz及以下HDMI通用分辨率,支持嵌入音頻

                MI2-DVI

                2路DVI輸入板卡,自適應輸入,支持1080P@60Hz及以下通用分辨率,支持嵌入音頻

                MI2-VGA

                2路VGA輸入板卡,支持RGB、VGA、支持RGB444色彩空間;分辨率:640*480---1920*1200@60Hz(VESA標準),支持嵌入音頻

                MI2-YP

                2路YPbPr輸入板卡,支持YUV444、YUV422色彩空間;分辨率:640*480---1920*1200@60Hz(VESA標準),480i---1080p60Hz(HDTV標準)支持嵌入音頻

                MI2-CV

                2路CVBS輸入板卡,自適應576i,480i CVBS等視頻輸入分辨率:支持嵌入音頻

                MI2-SFPO20K

                2路光纖3G、HD、SD-SDI/HDMI/DVI/VGA/YPbPr/CVBS輸入板卡,單模單芯,傳輸20千米

                MI2-HDBTE100

                2路雙絞線DVI/HDMI/VGA輸入板卡,驅動100米

                MI2-MF

                2路多格式HDMI/DVI/VGA/YPbPr/CVBS信號輸入板卡

                MI2-IP

                2路IP輸入H.264/5解碼卡,每路可解碼多個視頻碼流并支持最大16路畫面分割,支持字符疊加,輸出分辨率可達1080P60



                輸出板卡



                MO2-3G

                2路3G/HD/SD-SDI輸出板卡,支持全高清1920X1080@60Hz及以下分辨率,具有線纜均衡和時鐘恢復功能,支持解嵌音頻

                MO2-HM4K

                2路4K輸出板卡,HDMI2.0規范,帶寬達18Gbps,支持3840×2160@60Hz,支持高動態范圍和杜比全景聲等高級模式,支持解嵌音頻

                MO2-HM

                2路HDMI輸出板卡,支持HDMI1.4協議,支持HDMI解嵌音頻

                MO2-DVI

                2路DVI輸出板卡 ,支持1080P@60Hz支持色彩、色溫調節,支持解嵌音頻

                MO2-VGA

                2路VGA輸出板卡,支持640*480---1920*1200@60Hz(VESA標準),支持解嵌音頻

                MO2-YP

                2路YPbPr輸出板卡,支持640*480---1920*1200@60Hz(VESA標準),480i---1080p60Hz(HDTV標準),支持解嵌音頻

                MO2-CV

                2路CVBS輸出板卡,每路輸出分辨率獨立可調,視頻的相位、色彩、色溫等獨立可調,支持解嵌音頻

                MO2-SFPO20K

                2路光纖3G、HD、SD-SDI/HDMI/DVI/VGA/YPbPr/CVBS輸入板卡,單模單芯,傳輸20千米

                MO2-HDBTE100

                2路雙絞線DVI/HDMI/VGA輸出板卡,驅動100米

                MO2-MF

                2路多格式HDMI/DVI/VGA/YPbPr/CVBS信號輸出板卡

                MO2-AHD

                2路模擬高清AHD輸出,支持主流模擬高清錄像機,固定輸出分辨率1080P30

                MO2-IP

                2路IP輸入H.264/5編碼輸出,輸出碼率可調

                控制板卡


                Kd-SPLA4

                4路拼控卡





                配件


                Kde-DVIT

                1路HDMI/DVI/VGA雙絞線發射器,2路RCA音頻輸入,延長距離70/100米

                Kde-DVIR

                1路HDMI/DVI/VGA雙絞線接收器,1路VGA輸出,延長距離70/100米

                Kdo-HDT

                1路3G/HD/SD-SDI光纖發射器,延長距離20千米

                Kdo-HDR

                1路3G/HD/SD-SDI光纖接收器,延長距離20千米

                Kdo-DVIT

                1路HDMI/DVI/VGA/YPbPr/CVBS光纖發射器,延長距離20千米

                Kdo-DVIR

                1路HDMI/DVI/VGA/YPbPr/CVBS光纖接收器,延長距離20千米

                Kdo-ALLT

                1路HDMI/DVI/VGA/光纖發射器,延長距離20千米

                Kdo-ALLR

                1路HDMI/DVI/VGA/光纖接收器,延長距離20千米

                RCP-100D

                矩陣總控面板,高度1U

                SSFX1-1NDAI

                KVM輸入節點

                SSFX1-1NDAO

                KVM輸出節點




                Ordering Guide




                Model

                Instructions


                Kd-MF-144

                26U, Maximum scale:144×144

                Kd-MF-288

                44U, Maximum scale:288×288

                Kd-MF-320

                48U, Maximum scale:320×320











                Input board



                MI1-12G

                1-channel 12G/HD-SDI input board,support embedded audio,self-adaptive 12G/3G/HD-SDI signal input,

                support full HD 3840X2160@60Hz and downward HD resolution;automatic resolution recognition

                MI2-3G

                2-channel 3G/HD/SD-SDIinput board, self-adaptive 3G/HD -SDI signal input,support embedded audio

                MI2-HM4K

                2-channel 4K input board, HDMI2.0 specification, bandwidth up to 18Gbps, YUV 4:4:4 chrominance sampling, support 3840×2160@60Hz,support embedded audio

                MI2-HM

                2-channel HDMI input board, support HDCP and HDMI1.4 protocol, self-adaptive 1080P@60Hz and downward HDMI common resolutions,support embedded audio

                MI2-DVI

                2-channel DVI input boards, self-adaptive input, support 1080P@60Hz and downward common resolutions,support embedded audio

                MI2-VGA

                2-channel VGA input board, support RGB and VGA, support RGB444 color space;Resolution: 640*480-- 1920*1200@60Hz (VESA standard),support embedded audio

                MI2-YP

                2-channel YPbPr input boards, support YUV444, YUV422 color space;Resolution: 640*480-- 1920*1200@60Hz (VESA standard), 480i-- 1080p60Hz (HDTV standard),support embedded audio

                MI2-CV

                2-channel CVBS input boards, self-adaptive 576i, 480i and other CVBS video input resolution,support embedded audio

                MI2-SFPO20K

                2-channel optical fiber for 3G/HD/SD- SDI/HDMI/DVI/VGA/YPbPr/CVBS input boards, using single mode single core fiber, transmission distance up to 20 km

                MI2-HDBTE100

                2-channel twisted-pair DVI/HDMI/VGA input board, drive ability up to 100 meters

                MI2-MF

                2-channel multi-format HDMI/DVI/VGA/YPbPr/CVBS signal input boards

                MI2-IP

                2-channel IP input H.264/5 decoding board, each channel can decode multiple video streams and support a maximum of 16 screen segmentation, and support OSD, output resolution up to 1080P60



                Output board



                MO2-3G

                2-channel 3G/HD/SD-SDI output board, supporting full HD 1920X1080@60Hz downward resolutions, with cable balancing and clock recovery functions,support embedded audio

                MO2-HM4K

                2-channel 4K output board, HDMI2.0 specification, bandwidth up to 18Gbps, support 3840×2160@60Hz, and support high dynamic range and Dolby Panorama and other advanced modes,support embedded audio

                MO2-HM

                2-channel HDMI output board, support HDMI1.4 protocol, and support HDMI audio de-embedding

                MO2-DVI

                2-channel DVI output board, support 1080P@60Hz, support color, color temperature adjustment, and support audio de-embedding

                MO2-VGA

                2-channel VGA output board, support resolutions 640*480 -- 1920*1200@60Hz (VESA standard), and support audio de-embedding

                MO2-YP

                2-channel YPbPr output board, support resolutions 640*480-- 1920*1200@60Hz (VESA standard), 480i-- 1080p60Hz (HDTV standard),support embedded audio

                MO2-CV

                2-channel CVBS output board, each channel’s output resolution can be adjusted independently, and video phase, color, color temperature can be adjusted independently,support embedded audio

                MO2-SFPO20K

                2-channel optical fiber for 3G/HD/SD- SDI/HDMI/DVI/VGA/YPbPr/CVBS input boards, using single mode single core fiber, transmission distance up to 20 km

                MO2-HDBTE100

                2-channel twisted-pair DVI/HDMI/VGA output board, drive ability up to 100 meters

                MO2-MF

                2-channel multi-format HDMI/DVI/VGA/YPbPr/CVBS signal output boards

                MO2-AHD

                2-channel analog HD AHD output, support mainstream analog HD video recorder, fixed output resolution 1080P30

                MO2-IP

                2-channel IP input H.264/5 encoding output, with output bit rate adjustable

                Control board

                Kd-SPLA4

                4-channel splice control board





                accessories


                Kde-DVIT

                1-channel HDMI/DVI/VGA twisted pair transmitter, 2 RCA audio inputs, extended distance by 70/100 meters

                Kde-DVIR

                1 HDMI/DVI/VGA twisted pair receiver, 1 VGA output, extended distance by 70/100 meters

                Kdo-HDT

                1-channel 3G/HD/SD-SDI optical fiber transmitter, extended distance by 20 km

                Kdo-HDR

                1-channel 3G/HD/SD-SDI fiber optic receiver, extended distance of 20 km

                Kdo-DVIT

                1-channel HDMI/DVI/VGA/YPbPr/CVBS fiber optic transmitter, extending distance by 20 km

                Kdo-DVIR

                1 HDMI/DVI/VGA/YPbPr/CVBS fiber optic receiver, extending distance by 20 km

                Kdo-ALLT

                1-channel HDMI/DVI/VGA/ fiber optic transmitter, extending distance by 20 km

                Kdo-ALLR

                1 HDMI/DVI/VGA/ fiber optic receiver, extending distance by 20 km

                RCP-100D

                Matrix control panel, height 1U

                SSFX1-1NDAI

                KVM input node

                SSFX1-1NDAO

                KVM output node




                設計開發:聯合企邦
                &
                亚洲欧美日韩久久一区二区_亚洲成a人片在线观看www_亚洲AV片在线观看播放_CHINESE熟女熟妇1乱
                <span id="nlj7s"></span>
              2. <legend id="nlj7s"><i id="nlj7s"></i></legend>
              3. <optgroup id="nlj7s"></optgroup>
                <ruby id="nlj7s"><i id="nlj7s"></i></ruby>
              4. <acronym id="nlj7s"></acronym>
                1. <span id="nlj7s"><sup id="nlj7s"></sup></span>
                2. <span id="nlj7s"><output id="nlj7s"><b id="nlj7s"></b></output></span>
                3. <span id="nlj7s"><blockquote id="nlj7s"></blockquote></span>
                  <optgroup id="nlj7s"><em id="nlj7s"><pre id="nlj7s"></pre></em></optgroup>



                  <strong id="nlj7s"></strong>
                  1. <track id="nlj7s"><em id="nlj7s"></em></track>
                    1. <optgroup id="nlj7s"></optgroup>

                        <legend id="nlj7s"></legend>
